Elbow Connecting Tube | b.safe
| Chemical resistance: | ++ very good |
|---|---|
| Conductivity: | 1.000 kOhm |
| Material: | PE-EX, PTFE-EX |
| Temperature resistance: | from -50°C to +80°C |
Technical information
Operating Instructions

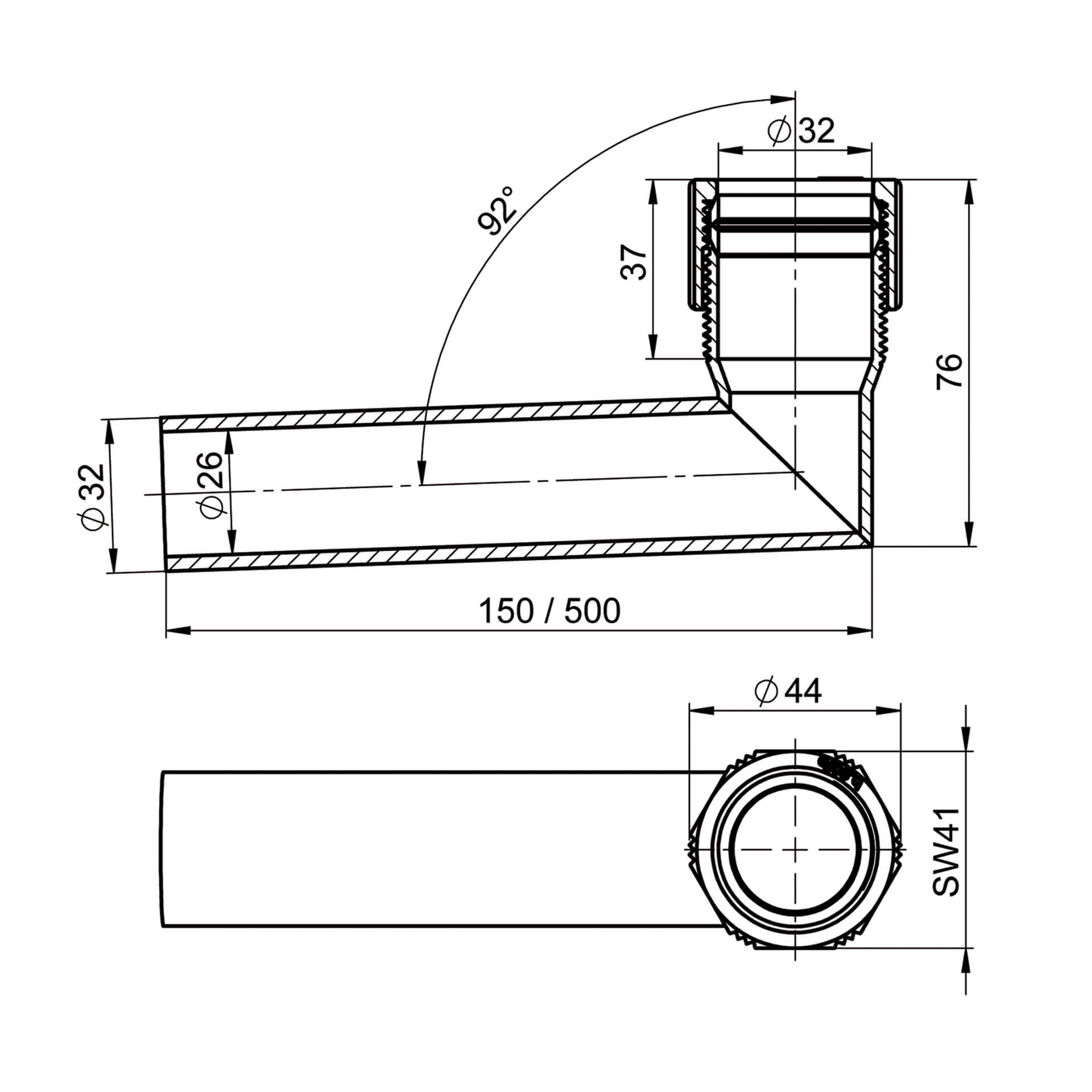

Dimensional Drawing
You may also like these products
| Connection 1 | Connection 2 | Form |
Total length [mm] |
Usable length [mm] |
Unit price | Product number | Select the quantity for an offer or order and place it in the shopping cart |
|---|
Product information "Elbow Connecting Tube | b.safe"
Product description

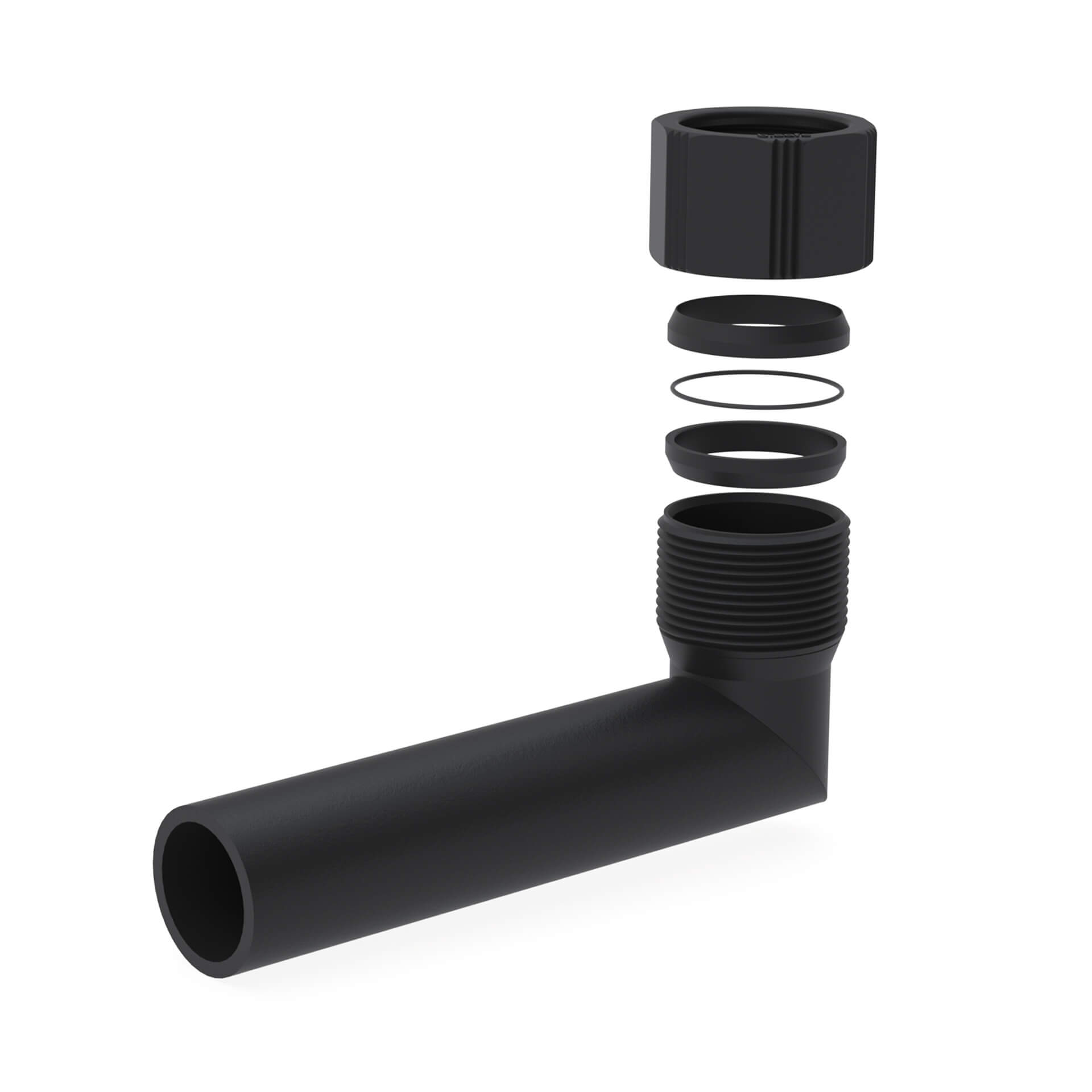

Elbow tube approx. 90° made of static dissipative PE-EX. With clamp connection for inserting and clamping b.safe Waste Pipes with O.D.32 mm, end piece with OD 32 mm. Available in two different usable lengths. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX, 1 O-ring in EPDM.
