Desktop Mount Multiport IV | b.safe
| Chemical resistance: | ++ very good |
|---|---|
| Conductivity: | 1.000 kOhm |
| Material: | PE-EX |
| Temperature resistance: | from -50°C to +80°C |
Technical information

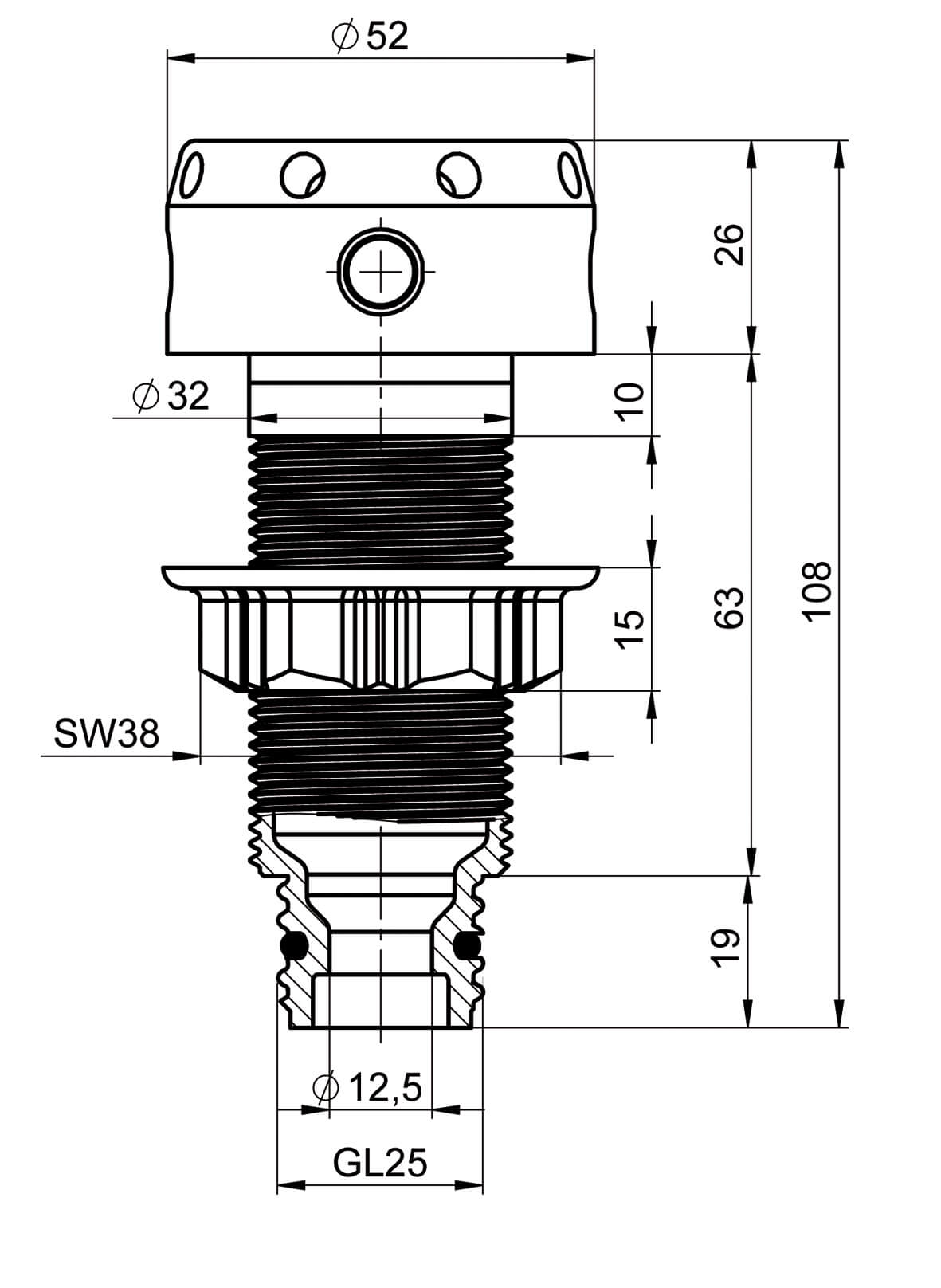

Dimensional Drawing
You may also like these products
|
Connection [upper side] |
No. of hose connections | Number of capillary connectors |
Total length [mm] |
Unit price | Product number | Select the quantity for an offer or order and place it in the shopping cart |
|---|
Product information "Desktop Mount Multiport IV | b.safe"
Product description
Made of static dissipative PE-EX, suitable for boards with a thickness of 10 to 35 mm, easy fixing by counter nut. Low installation height due to connections at the sides, inclined threads for additional sloping and connection of tubes without bending. Connections at upper side: 4x2 capillary connection (thread UNF 1/4“) to connect capillaries with b.safe Fittings, 4x1 hose connection (thread NPT 1/8“) for hose connectors. Fittings and hose connectors are not included in the scope of delivery. Connection at bottom: male thread GL25 for direct connection with flexible b.safe Waste Tubes.
Applications
One connection for collectiong liquid waste from up to 4 HPLC systems that can be integrated directly in laboratory hoods or working tables. b.safe Waste Tubes lead liquid solvent waste directly into connected canisters.
